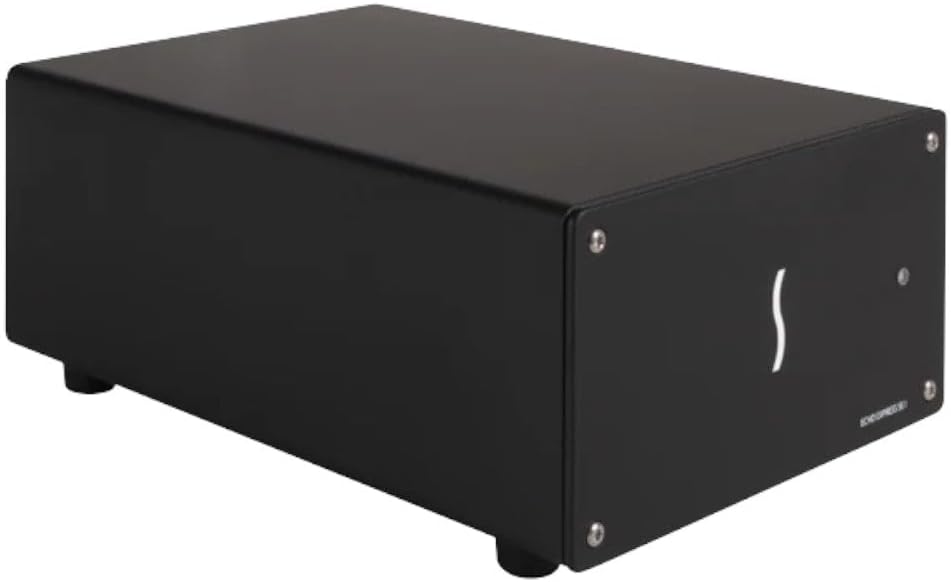

Sonnet Echo Express SE1 Thunderbolt 3 Expansion Chassis (Echo-EXP-SE!-T3)

Price: $369.99
(as of Oct 29, 2025 14:25:33 UTC – Details)

Product description

One PCIe 3.0 Slot and Space for a Daughter Card

The Echo Express SE I – Thunderbolt 3 Edition features an x8 PCIe slot, and supports one half-length+, full-height, single- or double-width PCIe card. Double-width? Some pro video and audio interface cards, such as Blackmagic Design’s DeckLink 4K Extreme, and RME’s HDSPe MADI FX card, include a daughter card that mates with and provides additional external connections to the main card. The daughter card occupies the adjacent space without filling a PCIe slot.

Thunderbolt 3 — The USB C That Does It All

The Echo Express SE I – Thunderbolt 3 Edition includes two Thunderbolt 3 (USB-C) ports; the first connects it to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The SE I includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. The SE I also provides full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(4). For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices(7).

Nearly Every Thunderbolt 3-Compatible PCIe Card Supported

Designed to accommodate cards up to 7.75 inches long and measuring a compact 5.6 inches wide by 8.6 inches long by 3.5 inches tall, the Echo Express SE I – Thunderbolt 3 Edition has a small footprint, yet it is large enough to support nearly every Thunderbolt 3-compatible PCIe 3.0, PCIe 2.0, and PCIe 1.1 card available.

Do you have a card in mind but aren’t sure it’s compatible? We’ve worked closely with PCIe card manufacturers to provide a list of compatible cards on our supporting PCIe Card Thunderbolt Compatibility Chart. The chart provides a list of cards that have been tested to be recognized over a Thunderbolt connection and compatible with Thunderbolt technology requirements.

Thunderbolt 3 (40Gbps) Cable and ThunderLok 3 Included

To connect the Echo Express SE I – Thunderbolt 3 Edition to your computer, Sonnet includes a 0.5-meter Thunderbolt 3 (40Gbps) cable, and a ThunderLok 3 Thunderbolt connector retainer clip(8) to secure the cable to the Echo chassis. Accidental cable disconnection can lead to data loss. Sonnet’s ThunderLok 3 is easy to install and use—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.

Connects a PCIe Expansion Card to Computers Without Slots—Use high-performance PCIe cards with any Mac or Windows PC with a Thunderbolt 3 port (not to be used as a GPU chassis)
One PCIe 3.0 x8 Slot—Supports one half-length+ (up to 7.75 inches long), full-height, single-width PCIe card (plus one daughter card)
40Gbps Thunderbolt 3 Interface—Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2
Full Performance In a Small and Light Design—Takes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible PCIe card, at full performance
Two Thunderbolt 3 (USB-C) Ports—One port reserved for connection to the computer; second port supports daisy-chaining of up to five additional Thunderbolt(5) devices to your computer, attaching a single USB(6) peripheral device, or connecting up to two 4K displays or one 5K display(4)
